How to perform a quick diagnosis

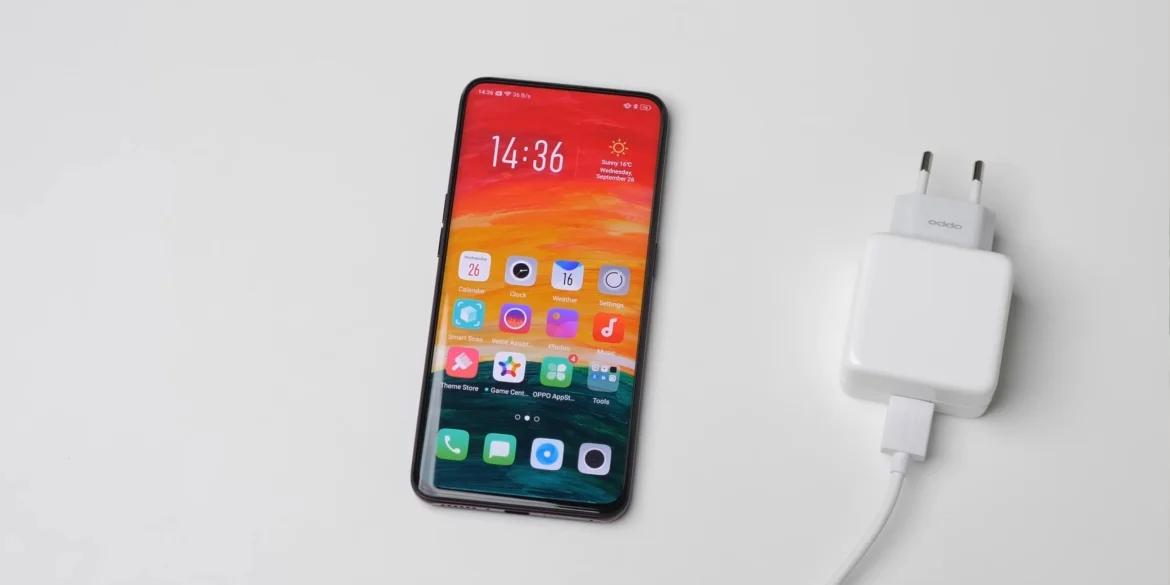

If your smartphone suddenly stops responding when plugged into a power outlet, don't panic and look for the nearest service center. First, check the most basic things. It'll only take a few minutes, but it'll save you a ton of hassle.Check the socket and connection

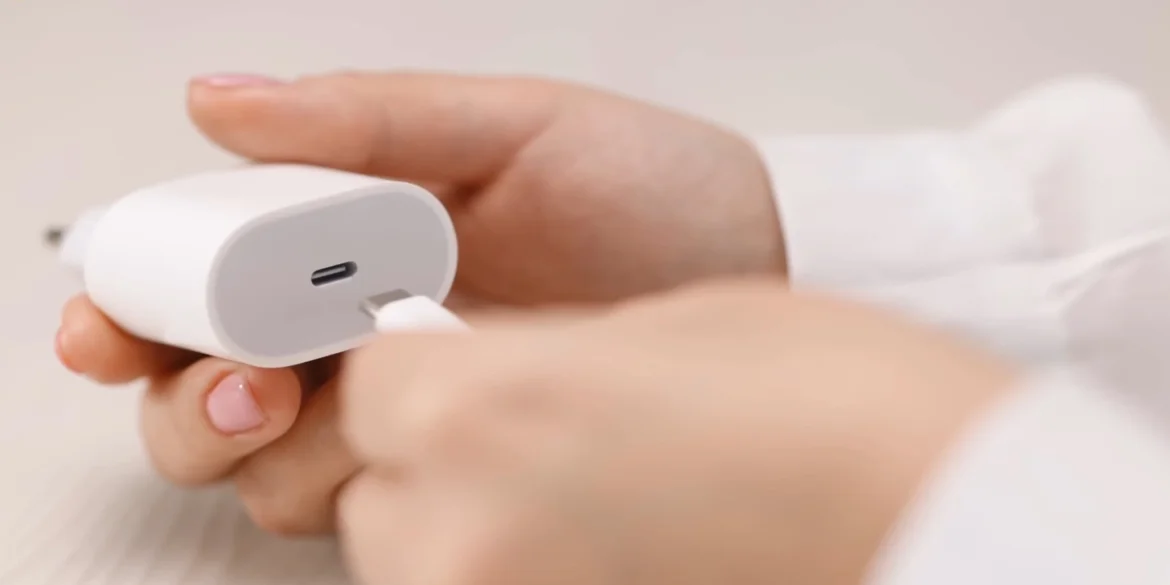

Sometimes, equipment malfunctions are caused by a simple lack of power or a loose connection in the socket. Therefore, unplug the power supply from the outlet and try plugging it into another one, preferably directly, bypassing extension cords, power strips, and surge protectors. Then, carefully check that the cord is securely fastened to the adapter and that the plug is fully inserted into the device's socket.Check the charging cable and power supply
With daily use , cables and adapters wear out. Over time, the thin wires inside the cable can break unnoticed, and the contacts on the plug often become corroded. The most reliable diagnostic method is to connect the smartphone with a different, known-good cable and power supply, or test your setup on another device.
And pay attention to the condition of the plug: if it is loose in the socket or gets hot, the problem is most likely in it.
Restart your phone
Minor software glitches and frozen processes can block charging, although this is rare. A simple reboot clears the RAM and restores system power management services. Here's how:- On Android , hold down the power button and select "Restart" from the menu that appears.
- On iPhone , quickly press and release the Volume Up button, then quickly press the Volume Down button. Then, press and hold the Side button until the Apple logo appears on the screen.
Try charging your phone from your computer.

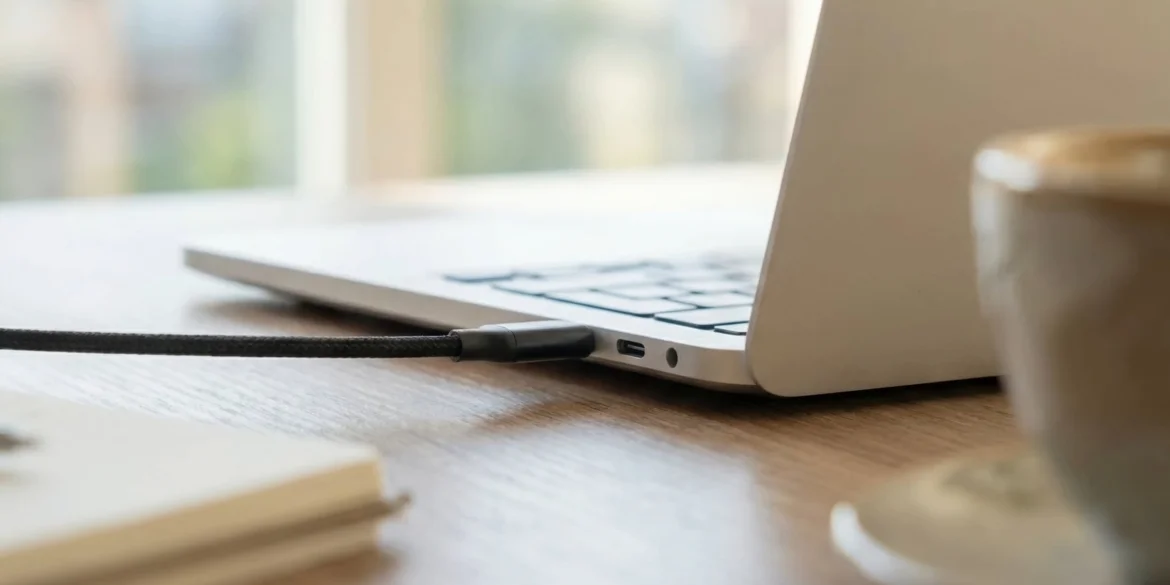

If a regular power outlet doesn't work, connect the device to a USB port on your computer or laptop using a working cable. This will help pinpoint the problem: if the power is coming from the PC normally, then the phone and cable are fully functional, and a faulty adapter is to blame.Make sure your PC or laptop is turned on and plugged into a power outlet, and when your phone asks if you trust this computer , be sure to confirm, otherwise charging may not work.
Why might my phone not charge?
The reasons may vary depending on the situation, but you can often fix them yourself.The charging port is dirty or damaged
Over time, dust, lint from pockets, and small debris accumulate in the Type-C or Lightning connector. Each time the plug is inserted, these particles become compacted, preventing the contacts from making a firm seal. As a result, the plug doesn't fully engage, and power is lost.Charging cable or adapter is faulty
In cheap, no-name cables, the problem often stems from the wires being too thin, which can become damaged. The voltage drops significantly, causing the phone to even display a lightning bolt icon, but the charge percentage will remain constant or even drop.
Battery problems
Over time, any battery loses its original capacity and changes its chemical properties. If the battery is completely exhausted or has been sitting idle for a long time, the protection board may block the current for safety reasons. In this case, the phone will not respond to charging or the process will be immediately interrupted because the controller cannot correctly recognize the connection.Charge limitation
If your phone isn't fully charging, but instead stagnates at 80-85%, it might not be a defect, but rather an issue with the smart protection features. Modern versions of Android and iOS have built-in algorithms that intentionally limit the maximum charge level to protect the battery from wear and tear and extend its lifespan.
You can rule out this cause by checking your smartphone's settings.
- On Android: Go to Settings → Battery or Power & performance and look for Battery protection, Battery optimization, or Battery limit.

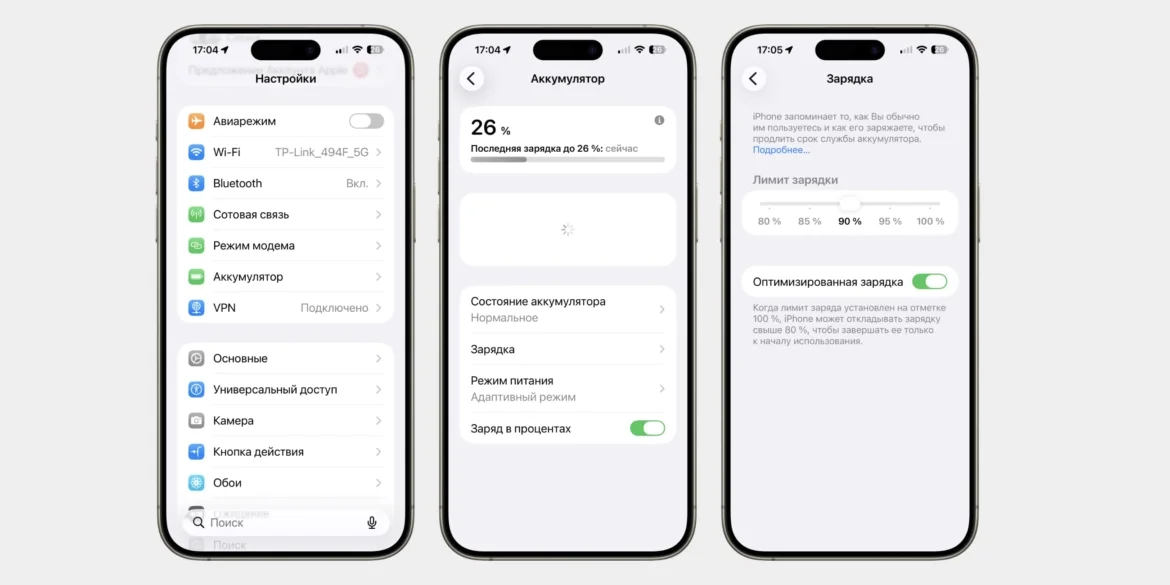

- On iPhone: Open Settings → Battery → Charging and check the Optimized Charging option and the battery limit.
Charge controller failure

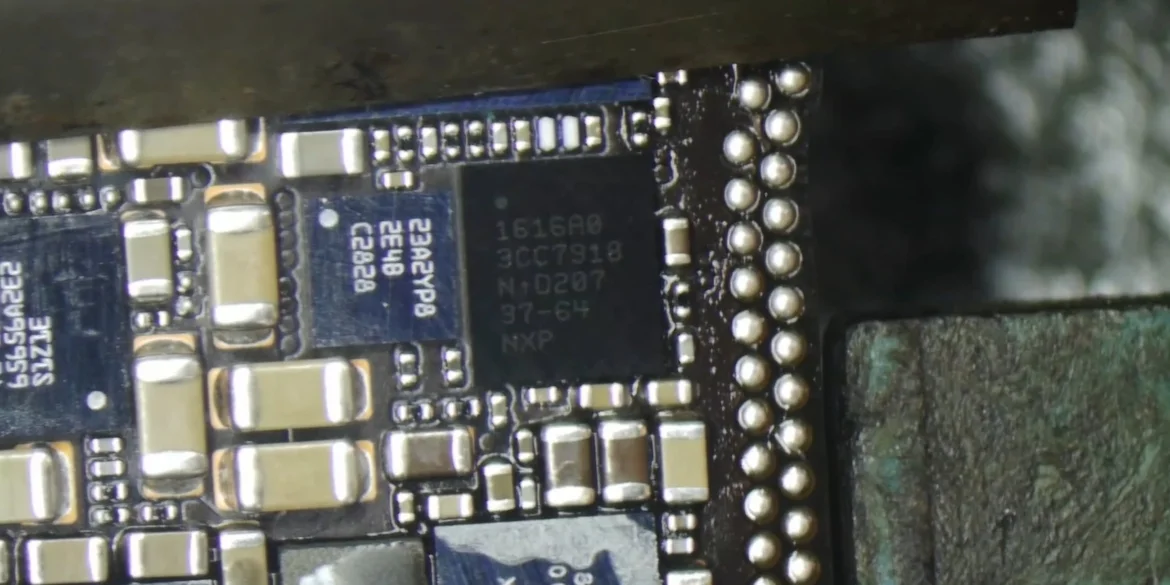

The power controller is a dedicated microchip on the motherboard that regulates current distribution and protects the device from voltage surges. This component is very sensitive to power quality: it can sometimes burn out due to sudden power surges, low-quality car chargers, or cheap power banks.
Repairing the controller at home is impossible, as it requires disassembling the device and micro-soldering skills . The only solution is diagnostics and repair at a reputable service center.
Overheating or overcooling of the device
Lithium batteries are extremely sensitive to temperature. When cooled below 0°C, chemical processes within the cell slow down, causing the battery to lose its ability to deliver and receive current. When heated above 45°C by direct sunlight, under a pillow, or while playing games while charging, the chemical reactions, conversely, accelerate dangerously. In both cases, the power controller blocks charging to protect the battery from degradation or fire.To return your device to working order, give it time to return to normal temperature. If it overheats , remove the case, close heavy apps, move the phone to a shady location, and wait 15–20 minutes. If your device freezes outside, let it sit at room temperature for about half an hour before reconnecting the cable.
Don't try to rush the process. Don't put a hot phone in the refrigerator or a cold one on a radiator—this is very dangerous, as the sudden temperature change will cause internal condensation, which will worsen the problem and damage the device.

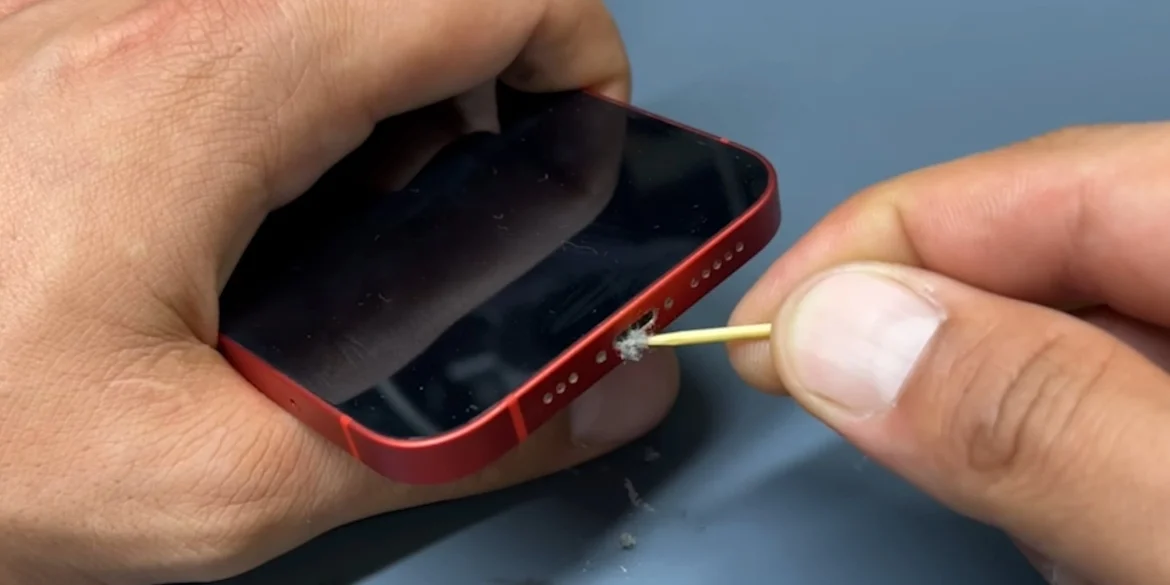

How to clean a charging port from dirt
If you notice debris has accumulated inside the connector or it is difficult to insert, follow the steps below to clean it safely and effectively.
- Turn off your device. Before handling the power port, be sure to completely power off your smartphone.
- Prepare the correct tool. Use only a wooden or plastic toothpick or a dry brush—either a special toothbrush or an old toothbrush. Never use metal needles, pins, or paper clips—they can damage the delicate connector pins and cause a short circuit.
- Ensure good lighting. Illuminate the port with a desk lamp or flashlight to clearly see the bottom of the connector.
- Carefully remove the debris. Using gentle pressure, run the tool along the contacts and corners of the socket, lifting up any compacted clumps of dust and lint.
- Blow out the connector. Remove any small debris using a can of compressed air or a special rubber bulb. Don't blow into the port with your mouth, as tiny droplets of saliva will get on the contacts and could cause them to oxidize.
What can you try in the settings?

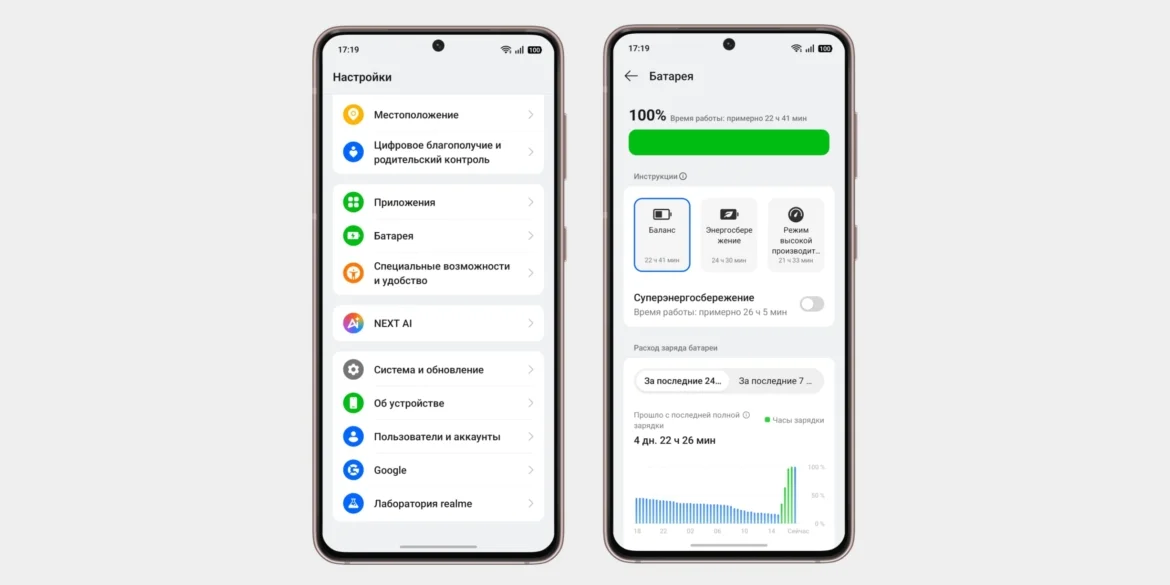

Look at several system parameters that can affect the recharge process.Check your battery settings
In some firmware versions, you can accidentally disable the fast charging option or activate battery saving mode in the settings. In this case, the smartphone won't stop receiving power completely, but the speed will drop to a minimum, and the battery percentage will feel like it's stagnating.
Go to the battery settings and make sure the fast or ultra-fast charging switches are enabled. You can also use built-in self-diagnostic utilities, such as the Samsung Members app or a similar service on Xiaomi. These programs query the connector sensors and accurately show whether the operating system is seeing incoming power and whether the connected cable is detected.
Update the firmware
Bugs sometimes appear in the OS code, preventing the smartphone from correctly recognizing connected accessories. This is rare, and manufacturers quickly and efficiently release patches with fixes. However, it's still a good idea to check for and install the latest updates.
- On Android: Go to Settings → System → System update or Settings → About phone → Firmware version.

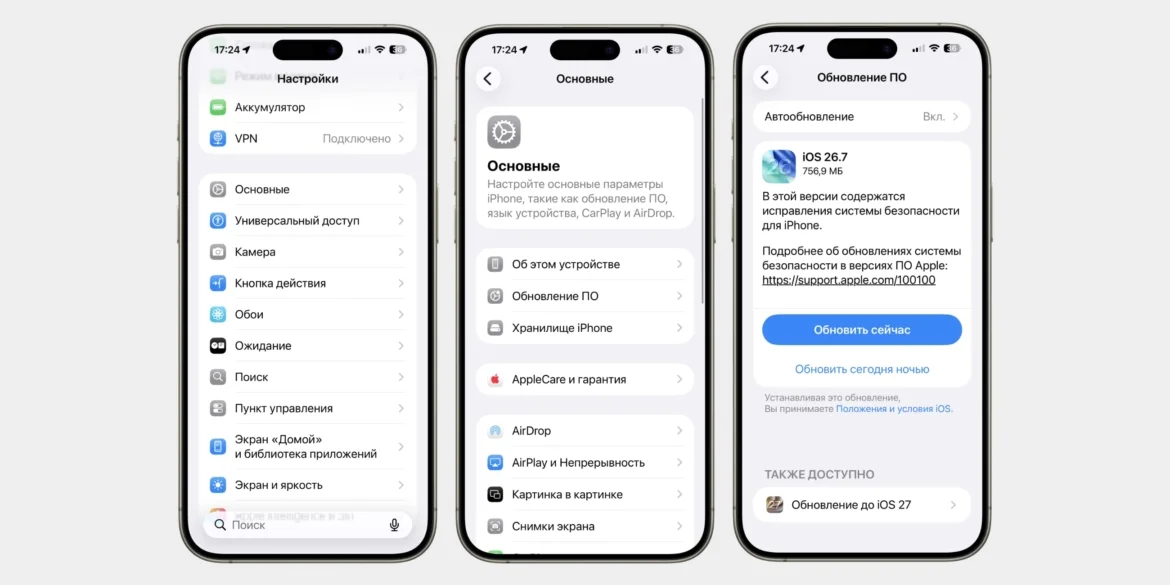

- On iPhone: Go to Settings → General → Software Update.
If your device is very low on battery, the system will block the installation process for security reasons. In this case, first charge the battery to at least 50% and only then initiate the update.
Reset to factory settings
If the previous steps fail, the last resort is a software reset. This allows you to completely rule out any firmware errors before calling a specialist.Before performing a radical format, try resetting the system settings first - this will preserve your photos, contacts, and apps.
- On Android: Go to Settings → System → Backup & reset → Reset phone and select Reset all settings. For a complete wipe, select Erase all data.
- On iPhone: Go to Settings → General → Transfer or reset iPhone → Reset → Reset all settings. Or, choose Erase All Content and Settings to completely erase your data.
What to do if the problem is with the battery
Any lithium battery is a consumable item with a limited lifespan. Over time, a battery can not only lose capacity but also behave unpredictably when plugged into a power outlet.You can tell that your battery is nearing the end of its life by several characteristic symptoms:
- Percentage fluctuations and sudden shutdowns. The gadget discharges unevenly, dropping from 30% to zero in a couple of minutes, or shuts down in freezing temperatures.
- Abnormal charging behavior. The battery reaches 100% in minutes and then loses charge just as quickly. Or, conversely, it gets stuck at 80–90% for hours.
- Performance degradation. The operating system may artificially lower the processor frequency to avoid power shortages during peak loads. The system will display notifications about this.

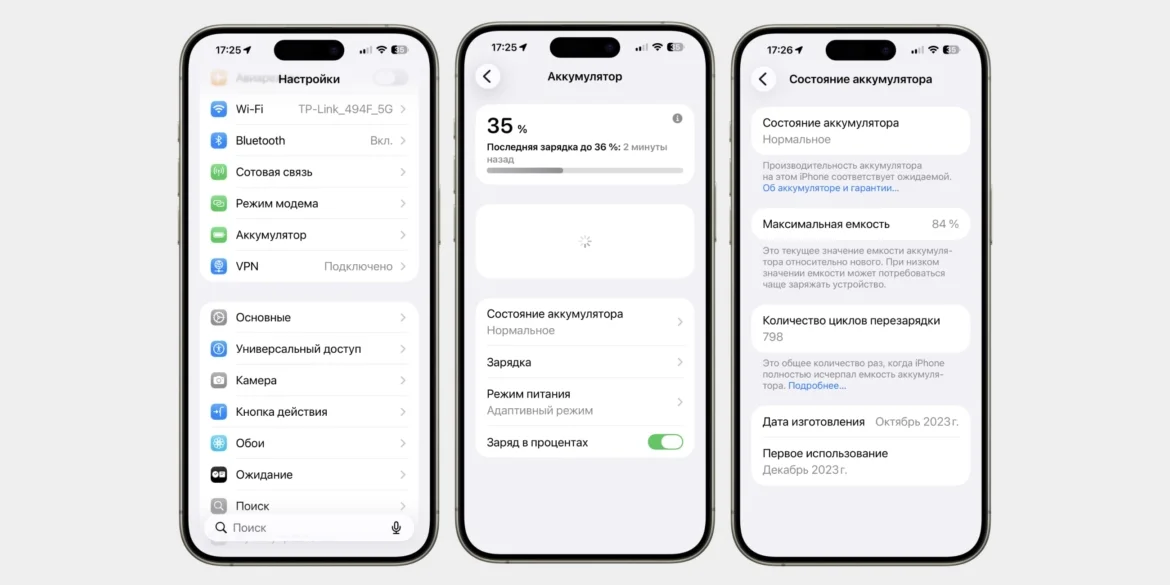

You can also check your battery's remaining life using software. On an iPhone, simply go to "Settings" → "Battery" → "Battery Health." On Android, the degree of degradation is shown by built-in engineering utilities or third-party software like AccuBattery, which estimates the actual amount of power being used.
When is it time to contact a service center?
If software resets and cable changes don't help, the problem is most likely hardware-related. In such cases, attempting to repair the device yourself may only make the problem worse.If you have followed all the steps but your phone still won't charge
If the cable is known to be in good condition, the port is cleaned of dirt, and the system is updated, but there is still no response to the connection, the problem may lie in deeper hidden defects.It could be a burned-out power controller, a solder joint, or a microcrack from a recent fall. Without a soldering station, a multimeter , and a microscope, it's impossible to diagnose and fix such a problem. Only a service center can help.
If you notice external damage

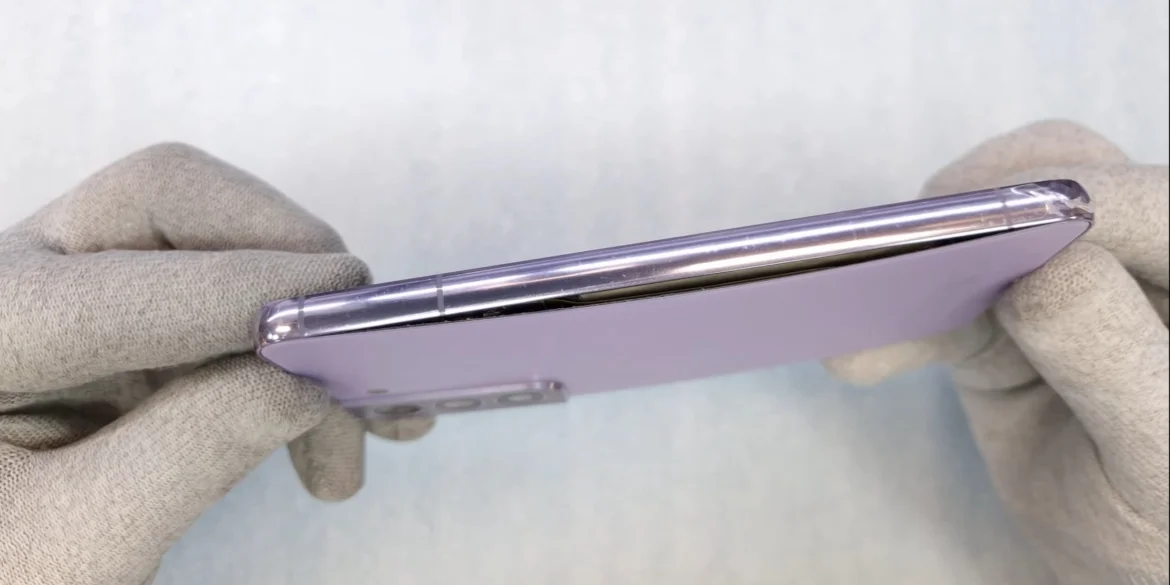

These include a deformed back cover, a peeling display module, broken tabs inside the USB-C port, or signs of corrosion. A protruding screen indicates a bulging battery: using such a gadget is dangerous due to the risk of fire.
If water gets inside the case, simple drying will not help, as the board requires professional ultrasonic cleaning to remove oxides.
If the phone does not turn on and does not respond to charging after all attempts
When the screen remains inactive and the case doesn't heat up even after an hour connected to a known-good power supply, the smartphone has entered deep protection mode. This occurs when the battery is critically discharged, there's a short circuit in the power supply, or the bootloader crashes.In the workshop, the device can be revived by applying current directly to the battery contacts from the laboratory unit or by restoring the power circuit.
